Family Pack Auto Wrapping Machine

Family Pack Auto Wrapping Machine is one of the best solutions in biscuit and bakery industries for packaging of different types of packets with double to four row provisions in one packet. Fully automatic with single chute hopper feeding belt conveyor and the auto stack selection by pusher and loader make it very effective and reduce the man power to a certain limit. The PLC controlled with touch screen panel make it user friendly and is easy to set the parameters. The speed can be varied up to 50 packets per minute according to no. of rows.

This machine is best suitable for Biscuits,Toasts, etc.

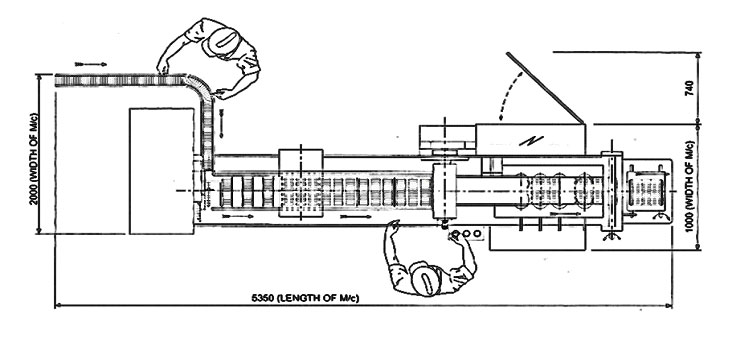

Dimensional Drawings:

Note: The machine can be customized as per customer requirement to PLC fully automatic or Non-PLC control panel).

Machine Specifications and Technical parameters:

Electrical Data:

Power Supply	3 Phase, 6 KW	440 V With neutral
Main Motor & Paper Motor	3 phase/1 phase 6 Lead	2 HP, 1440 rpm, 440 V, 50 Hz
Main VFD & Paper VFD	230 V, 2 HP	Input : Single Phase
		Output : 3 Phase

Jaw Heater	50 V, 350 W – 4 No (Check the actual wattage)
Dish Heater	50 V, 400 W – 4 No (Check the actual wattage)
Transformer	Primary - 2 Phase, 440 V, Secondary – 50 V, 30 A + 30 A

(Note:The electrical specifications are subject to change with our different types of models and functions of machines).

Technical Parameters & Specifications:

Product Size Range	50 mm (W) x 30 mm (Ht) x 5 mm (thk) To 60 mm (W) x 60 mm (Ht) x 8 mm (thk)
Stack Size Range	50 mm to 250 mm
Wrapper Size Range	120 to 350 mm Cutoff Length & 150 to 460 mm wrapper width
Type of Product	Should be stiff or hard and round or rectangle or square in shape.
Speed	20 to 50 Packets per Minute (PPM) (depending upon the size of the product & no of rows).
Feeding	Single hopper feeding with belt conveyor.
Control	PLC controlled
Machine Dimension	5350 (L) x 2000 (W) x 1675 (H)
Weight	1200 kg (Approx.)
Wrapping Material	BOPP laminated, LD Polyester, Heat Sealable Laminates Containing Aluminum Foil. Maximum 12” Roll diameter.

(Note:The designs/specifications are subject to change without notice on account of continuous improvement in machine quality).

Special Features:

• PLC controlled with touch screen & password protection for the machine settings.
• Easy to set the different cutoff lengths by putting the desired value in HMI (optional as per model selection) & as well as adjust the jaw dwell position in one stand operation.
• Malfunction display through self-alarm with message.
• Quick changeover for different varieties of products with fix forming box. Also auto selection of no of rows in HMI (in servo controlled machine) is one of the advantages because of less change over.
• AC motor with Variable Frequency Drive.
• Highly sensitive photoelectric scanner to monitor the pouch length and the cutting position. Also I-mark position can be adjusted in running condition.
• Epoxy liquid painted structure with SS 304 safety guards and electric control panel (optional as per selection).
• Hopper feeding with belt conveyor and auto stack selection by pusher and loader.
• End cutter and sealer have provision for single jaw system.
• Overall durable, practical, low maintenance and affordable. Suitable for working long hours without breakdown and without need of constant supervision.
